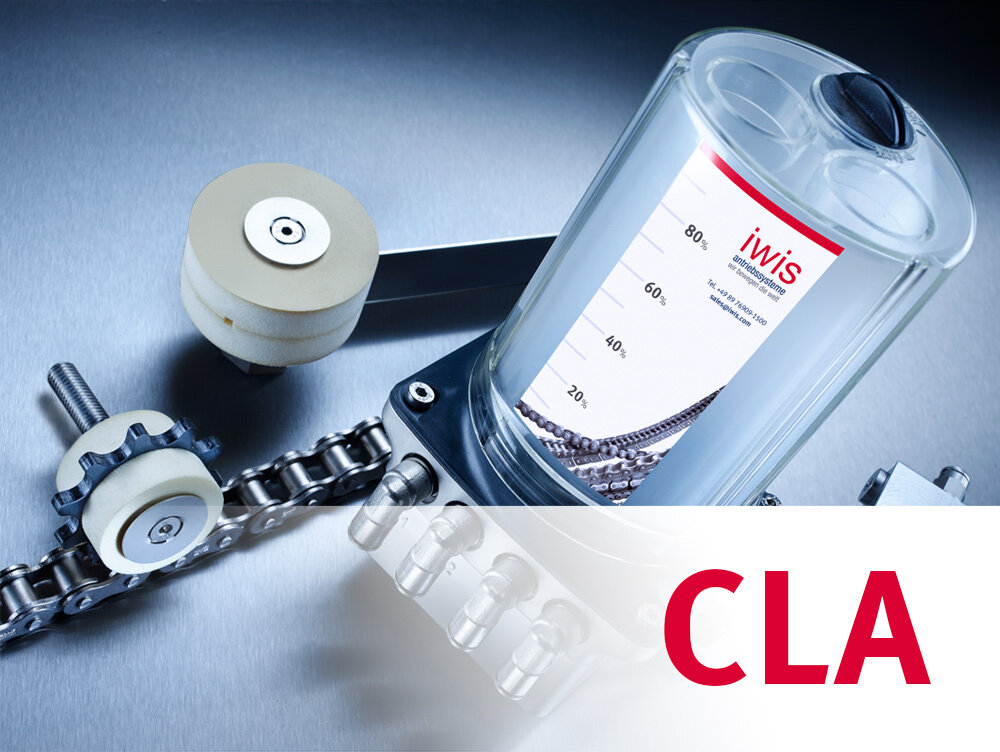

CLA Automatic Chain Lubrication System
The CLA lubrication system from iwis enables automatic, targeted relubrication of industrial chain drives. As a minimum quantity lubrication system, CLA continuously delivers small quantities of lubricant exactly where they are needed – directly to the chain.
Demand-based chain lubrication helps to reduce friction and wear and extend the service life of roller chains, conveyor chains and special chains. At the same time, targeted dosing can reduce lubricant consumption.
Thanks to the compact CLA lubrication pump, the system is suitable both for new machines and systems and for retrofitting existing chain drives. Depending on the application, the pump can be time-controlled or controlled via the machine PLC.
A key feature of the CLA system is the specially designed PU foam applicator. It acts as a lubricant reservoir and continuously delivers small quantities of lubricant to the chain exactly where they are needed.
Benefits of the CLA lubrication system
- Reduced lubricant consumption through precise minimum-quantity lubrication
- Reduced relubrication effort thanks to automatic lubricant supply
- Reduced wear through continuous, demand-based lubrication
- Cleaner machine environment without lubricant misting, as can occur with spray systems
- Easy retrofitting into existing machines and systems
CLA Lubrication Pump Versions
CLA High-Performance Chain Oils
Two lubricants – ideally matched to applications using the iwis CLA lubrication system and perfectly suited for chain relubrication.
CLA Oil HP
- High-performance oil with PTFE for outstanding wear and corrosion protection
- Highly effective additives provide excellent penetration properties while the high viscosity ensures excellent resistance to being thrown off
- Ideally suited for high-speed chain drives
| Colour | White |
| Viscosity at 40 °C | 2.500 mm²/s |
| Density at +15 °C | 0,92 g/cm³ |
| Temperature range | -10 °C bis +80 °C |
| Container | 5-litre cannister |
CLA Oil Food
- Low-viscosity, high-performance lubricant with excellent penetration properties, enhanced wear protection and NSF H1 food-grade approval
- Selected additives enable the lubricant to penetrate effectively into the chain joint
- The highly resistant, adhesive lubricant also provides excellent noise-reducing properties
| Colour | Yellowish, clear |
| Viscosity at 40 °C | 141 mm²/s |
| Density at +15 °C | 0.867 g/cm³ |
| Temperature range | -15 °C to +120 °C |
| Container | 5-litre cannister |
Automatic Lubrication for Industrial Chain Drives
The CLA automatic chain lubrication system is designed for the controlled relubrication of industrial chain drives. It can be used with roller chains, conveyor chains and special chains in a wide range of machinery and production systems.
Thanks to its compact design, the CLA system can be integrated into new machines or retrofitted to existing chain drives. Depending on the application, lubrication can be time-controlled or integrated into the machine PLC for demand-based lubricant supply.
Precise lubricant application directly at the required lubrication points supports reliable chain lubrication while helping to reduce lubricant consumption, manual relubrication effort and wear.
CLA Lubrication System Accessories
In addition to the CLA pump, iwis also supplies the appropriate connectors and hoses, allowing a complete set to be configured specifically for the respective application.
For more information, please refer to the CLA Operating Manual.
Overview of all CLA accessories
- Lubricating roller made from PU foam
- Lubrication sprockets
- PA 12-PHL 6x3x1.5 hose
- Push-in hose connectors for 6 mm hose, available with various threads
- Adapters for lubrication points
- 4-pole cable with M12x1 connector
